VIBGuard

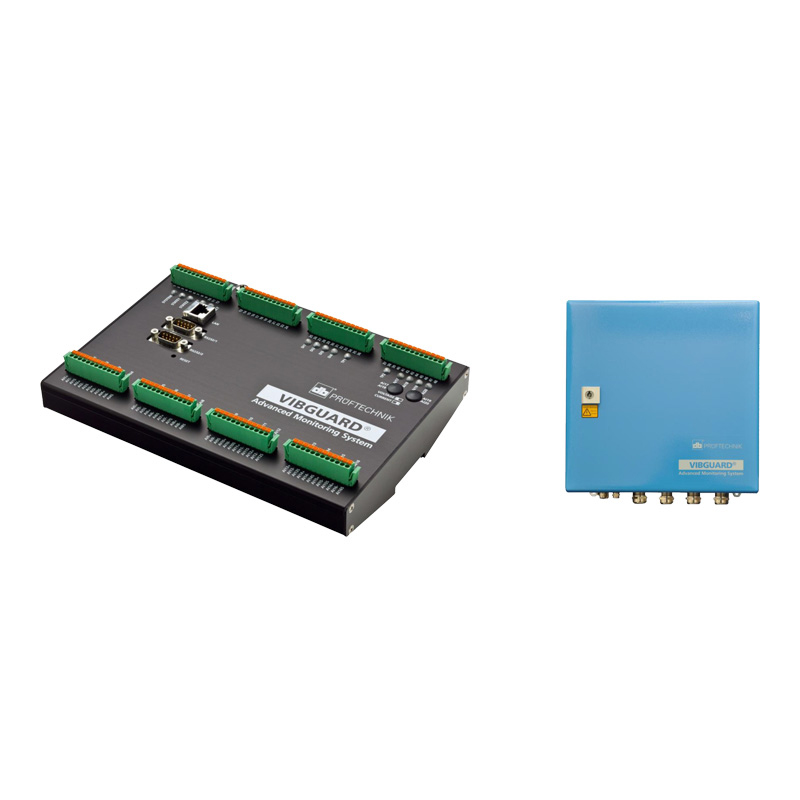

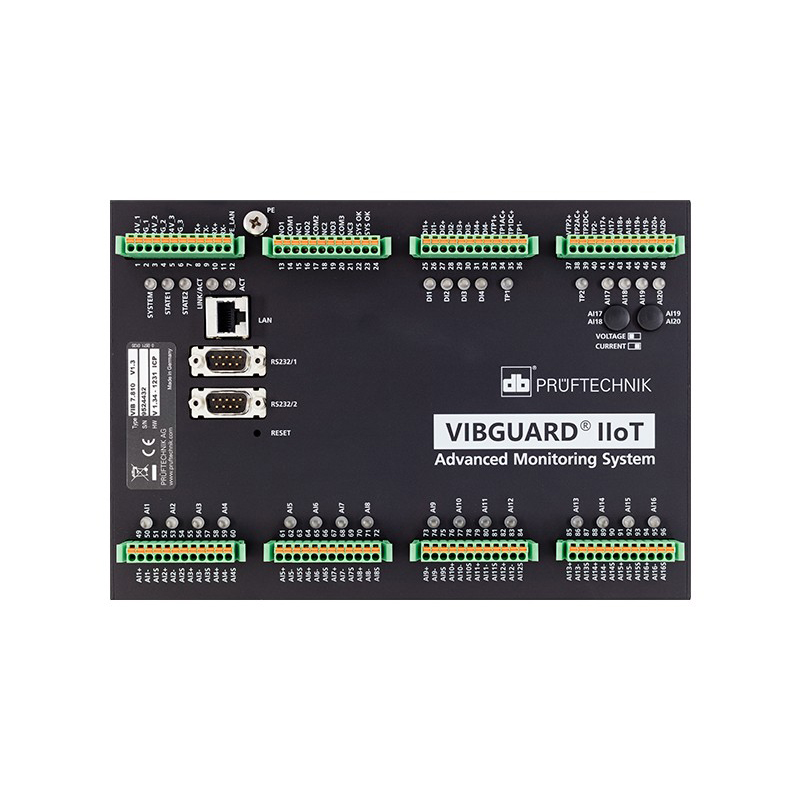

VIBGUARD IIoT provides 12, 16 or 20 measurement channel options for parallel and simultaneous sampling. Even the most complex equipment can achieve continuous monitoring and prevent unplanned downtime.
VIBGUARD IIoT runs automatically and performs measurement tasks automatically. Measurement data such as time signal, characteristic value, FFT spectrum, dynamic wave path (orbit) or torque can be processed in parallel and almost real-time, and correlated with the running production process. Fast data processing makes VIBGUARD IIoT a perfect monitoring and diagnostic system for systems with short operating cycles, such as cranes, machine tools, presses or machines with highly dynamic processes such as test benches, wind turbines or chain conveyors. Using VIBGUARD IIoT can also easily and effectively monitor all important fans and pumps.
VIBGUARD IIoT can measure time signals, overall values, FFT spectrum, shock pulses, orbits, etc. on 12, 16 or 20 parallel channels, and is suitable for almost all types of signal inputs. Vibration, speed pulse, temperature, and any other relevant diagnostic inputs (such as torque) are processed and can be correlated with the actual manufacturing process.
The measurement is seamlessly integrated into the process control system through the MQTT interface. Intelligent data management tools can achieve effective data reduction.
Advanced alarm processing tools such as variable frequency band alarms and frequency band trends can be used to monitor specific machine faults such as imbalance, misalignment, gear meshing and bearing failures.
VIBGUARD IIoT can be easily connected to the buffered output of the real-time protection system for in-depth analysis and monitoring of turbomachinery.
Features:
1. 12, 16 or 20 analog channels for vibration monitoring and signal processing
2. Time signal, eigenvalue, FFT spectrum, kinetic energy wave path (orbit), torque
3. Smart and simple IIoT solution for predictive maintenance
4. Advanced alarm processing tools can be used to monitor specific machine faults
5. Free access to OMNITREND Asset View software
6. Flexible installation (DIN rail, etc.)
7. Free software updates
+86-21-67530576 Contact Us
  • Description
  • Contact Us

Shanghai Ying Yu Port Machinery Co., Ltd. was founded in 2011. It is famous China port equipment VIBGuard suppliers and ODM port equipment VIBGuard company that produces and sells port machinery equipment spare parts. The factory covers an area of 4000 square meters, of which the workshop covers an area of 2000 square meters. After years of development, the company has many OEM factory customers and port customers,  such as ZPMC and Shanghai port. The company also won the China Classification Society GB/T19001-2008/ISO9001-2008 quality management system certification.

The company mainly produces Twistlock pin, RTG wheel rims, sheave and wheel, roller, sprocket and rail clips and so on. The companyTITAN agent in China.

The company has high precision CNC lathe, CNC machining center, grinder, milling machine, lathe and other various types of large-scale processing equipment, 60T tensile testing machine, magnetic powder flaw detector, ultrasonic flaw detector, hardness tester and other testing equipment. The company has more than 30 employees, of whom more than 30% employees with college degree or above, 45% employees are senior technical personnel. The staff has high comprehensive quality and strong technical force. Under the technical guidance and training of senior engineers with many years of experience in manufacturing port machinery fittings, a group of young technicians with excellent skills have been developed.
